Small remote control duplicator, only 41x31x11mm, copy up to 4 different remote controls which transmit a fixed code in one of the supported frequencies, listed in the Tab.1,
transmits when it's supplied by external 8-35Vdc.
The frequency, transmission power and other parameters, can be simply programmed using the Prog button. Also, Prog button can be pressed without the need to open the case.
Changing the transmission power is possible to minimize the interference and collisions or maximize the distance.
It can be used open a gate, garage doors or traffic barrier, and it's suitable to be connected to a domotic controller to transmit a code when it's supplied.

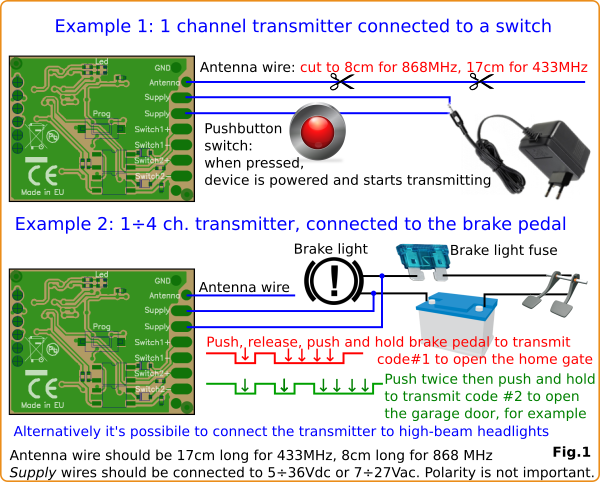

It can be connected, through a switch, to an external power supply: a wide range of voltage, 8÷35Vdc and 9÷24Vac, is supported.
When the switch is pressed/closed, the device is supplied and starts to transmit the code that was previously learned.
Also, programming CreasolSender in mode2 or mode3, it's possible to push the power supply switch more times to select the code that should be transmitted, as shown in the following figure.
It's supplied in nice transparent-recyclable clamshell with instructions printed in more languages. Companies that would like to purchase this product can send an email to
Documentation
Application note: using Creasol-Sender to open gates, garage doors and traffic barriers by high-beam light flashing
Creasol-Sender supports 4 different channels, and can be supplied by the high-beam lever of the vehicle to command up to 4 automations (garage doors, gates, barriers, ...):
- 1 short flash + long flash => transmit channel 1 (to open, for example, home gate)
- 2 short flashes + long flash => transmit channel 2 (to open, for example, home garage door)
- 3 short flashes + long flash => transmit channel 3 (to open, for example, traffic barrier at work)
- 4 short flashes + long flash => transmit channel 4 (to open, for example, holiday house gate)
This is a very easy and safe solution to open automations from your car, truck or motorcycle, without getting distracted looking for the remote control. Please note that Creasol-Sender is able to copy only fixed code remote control: if your automation uses a rolling code remote controls, you have to add a universal receiver like Creasol UniRec1 or UniRec2 to that automation.
Installation
Installation must be done by a qualified technician.
First, check that the remote control to copy is compatible with Creasol_Sender:
- Connect Supply wires to any 12 or 24V power supply or battery.
- Set parameter 9 to 3 to enter "car mode": push PROG button 9 times, wait for led flashing, then push PROG button 3 times
- Set frequency for channel 1: push PROG button 1 (selecting channel 1: led goes solid green), then push PROG button 5 times (frequency parameter: led will start flashing a number of times corresponding to the current frequency), then push PROG button a number of times corresponding to the needed frequency (2 for 433.92MHz, 3 for 868.3 MHz).
- Copy the existing remote control: push PROG button 1 time (to select channel 1), then push PROG button 2 times (to start learning): led starts flashing slowly. Within 10 seconds push the button on the original remote control: green led will emit 2 flashes (code has been copied) or 4 flashes (rolling code, so most probably Creasol-Sender will not work).
- To test the programmed channel, remove power supply for few seconds, then connect power supply for half second, remove for half second, then connect power supply for few seconds: the red led flahses while transmitting.
- If the transmission time is too short, set parameter 6 to 8: push PROG button 6 times (parameter 6: led will flash N times indicating the current value), then push PROG button 8 times
If other channels should be programmed, repeat steps 3-6 selecting the right channel, 2, 3 or 4.
If CreasolSender is compatible,
- Cut the antenna wire to 17cm for 433 MHz, or 8cm for 868 MHz.
- Check the vehicle manual to find the fuse box with the high-beam light fuse/relay. Place the device into the fuse box (or in another appropriate protected enclosure), and Supply wires to the highbeam relay coil, or connect 1 wire to the ground (vehicle chassis) and 1 wire to the highbeam fuse (remove the fuse, place the bare wire in the fuse holder, and plug the fuse again). Supply voltage should be in the range 6-35V. Assure that power supply to CreasolSender is not applied when highbeam are OFF.
Now it's possible to test the device. Take a small high-beam flash followed by a long flash to transmit channel1: the last flash must be at least 1 second long, to supply Creasol_Sender enough to transmit the code and let the automation (gate, barrier, ...) decoding the transmitted data.
To transmit the code associated to channel 2, take 2 short flashes followed to a long flash. The same for channels 3 and 4.

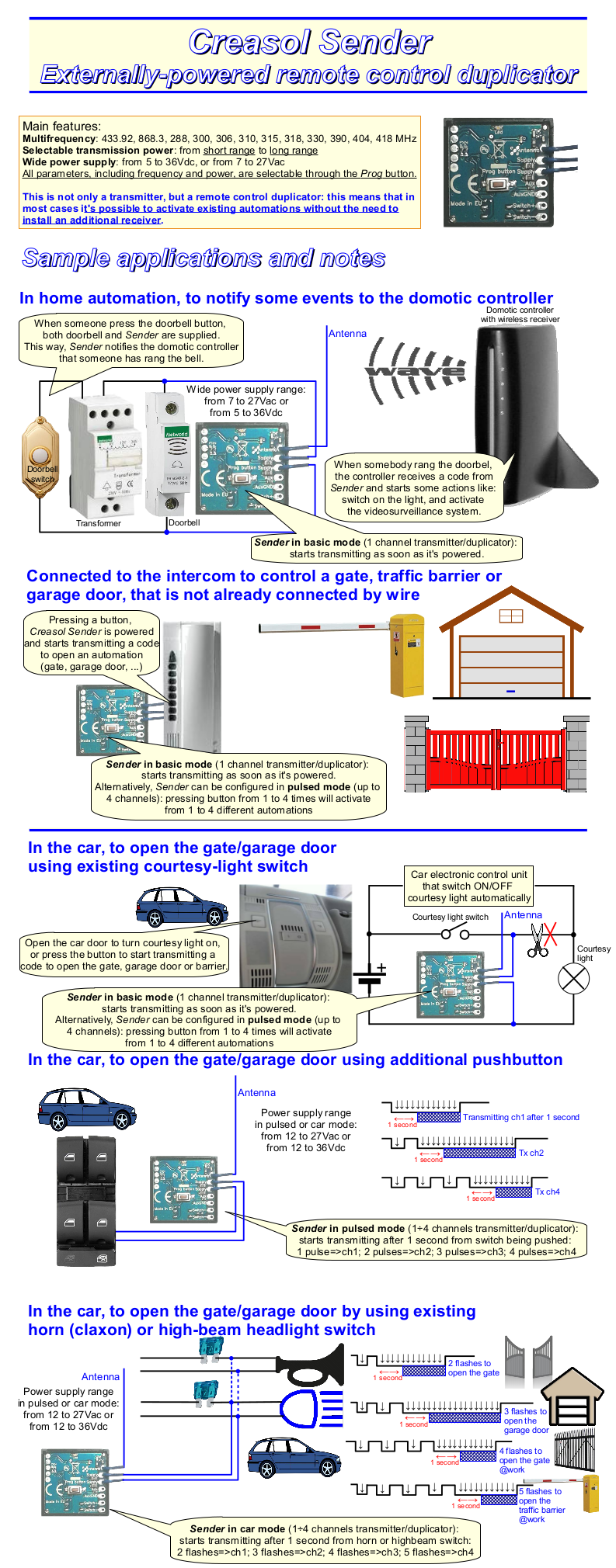

Application note SENDER_01: Externally-supplied remote control duplicator - Some applications
Download this application note in PDF format
Italiano
Questa nota applicativa mostra alcuni esempi di applicazioni per Creasol Sender, un duplicatore di radiocomandi, che viene alimentato esternamente e iniziare a trasmettere non appena l'alimentazione viene applicata. Può essere utilizzato come un normale telecomando, per aprire cancelli o porte di garage o barriere, all'interno di un'automobile o applicato ad un pulsante di casa. Inoltre può essere utilizzato per trasmettere un codice ad un controller domotico o altro ricevitore, per notificare un evento ed eseguire alcune azioni.
English
This application note shows some example of applications for Creasol Sender, a remote control duplicator which is supplied by external power supply and start to transmit as soon as power supply is applied. It can be used as a normal remote control, to open gates or garage doors or traffic barriers, inside a car or applied to a pushbutton switch in the house. Also it can be used to transmit a code to a domotic controller or another receiver, to notify an event and perform some actions.
Français
Cette note d'application montre quelques exemples d'applications pour Creasol Sender, un duplicateur de télécommande qui est fournie par une alimentation externe et commencer à communiquer dès que l'alimentation est appliquée. Il peut être utilisé en tant que contrôle à distance normale, pour ouvrir des portes ou des portes de garage ou de barrières de circulation, à l'intérieur d'une voiture ou appliqué à un bouton-poussoir dans la maison. Aussi elle peut être utilisée pour transmettre un code à une unité de commande domotique ou d'un autre récepteur, pour notifier un événement et d'effectuer certaines actions.
Deutsch
Diese Application Note zeigt einige Beispiele von Anwendungen für Creasol Sender, eine Fernbedienung Duplizierer, die durch externe Netzteil mit Strom versorgt wird und beginnen, sobald Spannung anliegt übertragen. Es kann als eine normale Fernbedienung verwendet werden, um Tore oder Garagentore oder Traffic Schranken öffnen, in einem Auto oder auf einen Taster im Haus. Auch kann es verwendet werden, um einen Code zu einem domotic Controller oder einen anderen Empfänger zu übertragen, um ein Ereignis zu benachrichtigen und einige Aktionen.
Español
Esta nota de aplicación muestra algunos ejemplos de aplicaciones para Creasol Sender, una duplicadora de control remoto que se suministra con fuente de alimentación externa y empezar a transmitir tan pronto como fuente de alimentación se aplica. Se puede utilizar como un control remoto normal, para abrir puertas o puertas de garaje y barreras de tráfico, dentro de un automóvil o se aplica a un interruptor pulsador en la casa. También se puede utilizar para transmitir un código a un controlador domótico o receptor otro, para notificar un evento y realizar algunas acciones.
Português
Esta nota de aplicação mostra alguns exemplos de aplicações para Creasol Sender, um duplicador de controlo remoto que é fornecido pela fonte de alimentação externa e começar a transmitir logo que fonte de alimentação é aplicada. Ele pode ser usado como um controlo remoto normal, para abrir portas ou portões de garagem ou de barreiras de trânsito, dentro de um carro ou aplicados a um comutador de botão de pressão na casa. Também pode ser utilizada para transmitir um código para um controlador de domótica ou de outro receptor, para notificar um acontecimento e realizar algumas acções.
Remote controls compatible with Creasol Sender and Creasol SenderBatt
Cannot find your remote control in the Compatible and Incompatible tables below?
Please send a message by Telegram or Whatsapp to +393283730010 including remote control pictures, brand and model.
Company | Frequency | Models | Photo | Frequency value (cmd=5) | Notes |
ADYX | 433.920 | ALIZE EM2C, ALIZE EM4C | ![]() |
2 | |
AETERNA | 433.920 | TX433 1,2,4 buttons | ![]() |
2 | |
ALLMATIC | 306.000 | ALLMATIC ASMX2, ASMX4 | ![]() |
8 | Original remote controls may be not stable in frequency |
433.920 | ALLMATIC AEMX1, AEMX2, AEMX4 | ![]() |
2 | ||
EUROPE AUTO ARMY1, ARMY2, ARMY4 | ![]() |
2 | |||
ALLMATIC MX1, MX2, MX4 | ![]() |
2 | |||
ALLTRONIK | 433.920 |
S429_1, S429_2, S429_4, S429_M Be sure that your remote operates at 433.92MHz! |
![]() ![]() |
2 | |
S425 | ![]() |
2 | |||
ANSONIC | 433.920 | SA 434-1E, SA434-2E, SA434-3E, SA434-4E |
![]() |
2 | |
SA 434-1MINI, SA434-2MINI, SA 434-2Midi | ![]() |
2 | |||
868.350 | SA 868-1E, SA 868-2E, SA868-3E, SA868-4E | ![]() |
3 |
||
SA 868-1mini/M, SA 868-2mini/M (dip switch version) | ![]() |
3 |
|||
APERTO | 433.920 | CPS1, CPS2, CPS |
![]() |
2 | |
AVIDSEN | 433.920 | 100601 micromark MM23164 | ![]() |
2 | |
104505 | ![]() |
2 | |||
100951, 100955, 100550, 100400 | ![]() |
2 | |||
BANDY | 433.920 | ![]() |
2 | Not sure it work, because this is a duplicator: check the original remote control | |
BELFOX | 433.920 | DHS433-1, DHS433-2, DHS433-4, dip switch version | ![]() |
2 | |
DHS 433,92 (7733), dip switch version | ![]() |
2 | |||
868.350 | DHS 868,3, dipswitch version | ![]() |
3 |
||
HS 868-20 | ![]() |
3 |
|||
BENINCA' | 306.000 | LOT1A, LOT2A, LOT4A | ![]() |
8 | Original remote controls may be not stable in frequency |
LOTX1A, LOTX2A, LOTX4A | ![]() |
8 | Original remote controls may be not stable in frequency | ||
LO.TX2PS | ![]() |
8 | Original remote controls may be not stable in frequency | ||
433.920 | LOT1W, LOT2W, LOT4W | ![]() |
2 | ||
LOT2WMS | ![]() |
2 | |||
T2WK, T4WK | ![]() |
2 | |||
LOTX1W, LOTX2W, LOTX4W | ![]() |
2 | |||
TO.GO2WP, TO.GO4WP, TO.GO2WK, TO.GO4WK | ![]() |
2 | |||
BERNER | 868.300 | Berner BHS140 | ![]() |
3 | Firmware Rev.03c or later |
Berner BHS130 | ![]() |
3 | Firmware Rev.03d or later | ||
BESIDE | 433.920 | BEZAP | ![]() |
2 | |
HIT | ![]() |
2 | |||
BETA ELETTRONICA | 315.000 |
BETALARM 6500 |
![]() |
4 | Original remote controls may be not stable in frequency |
330.000 | BETALARM 5500 | ![]() |
11 | Original remote controls may be not stable in frequency | |
BFT | 306.000 | RCS | ![]() |
8 | Original remote controls may be not stable in frequency |
315.000 | VTM1, VTM2, VTM4 | ![]() |
4 | Original remote controls may be not stable in frequency | |
418.000 | GT01, GT02, GT04 | ![]() |
14 | ||
433.920 | TE01, TE02 ( TEO1, TEO2 ) | ![]() |
2 | ||
TE04 ( TEO4 ) | ![]() |
2 | |||
BFT MITTO 2, MITTO 4, MITTO-2A, BFT MITTO-4A, MITTO-2M, MITTO-4M |
![]() |
2 | |||
BOSS Openers STEEL-LINE Automation Centurion Guardian |
303.000 | BOSS HT4 6211-L 1,2 and 4 buttons, Boss BHT4, Boss HT3 blue led, Guardian 2211-L, Centurion 2211L, LYNX 2211L, MODERN 2211L 1 and 2 BUTTONs, STEEL-LINE 2211L 1, 2 and 4 BUTTON, STEEL-LINE HT3 BLUE LED, Garage Door Openers BRD1, BRD2, BRD3, BRD4, BRD9, RD1, RD2, RD3, RD4, RD9, BOL4, BOL5, BOL6, BOL9, OL4, OL5, OL6 | ![]() |
7 | Only versions from March 2017: ask for confirmation |
BREDA | 433.920 | Breda TOP432SA | Like CAME TOP432SA, blue | 2 | |
CAME | 315.000 | Came T312M, T314M | 4 | Original remote controls may be not stable in frequency | |
Came TOP312, TOP314 | ![]() |
4 | |||
Came TOP312NA, TOP314NA | ![]() |
4 | |||
433.920 | Came T432, T434 Came TOP432A, TOP434A, TOP432, TOP432NA, TOP434NA, Came Came TAM432, TAM434, TAM438 |
![]() |
2 | ||
Came TOP432M, TOP434M | ![]() |
2 | |||
Came TAM432SA | ![]() |
2 | |||
Came TOP432SA | ![]() |
2 | |||
Came TOP432NA, TOP434NA |
![]() |
2 | |||
Came TWIN2, TWIN4 | ![]() |
2 | |||
CAME TOP-432EE, CAME TOP434EE | ![]() |
2 | Note that this remote control can be programmed to generate a fixed code or a rolling code. Duplication works only if programmed as fixed code! | ||
CAME TOP-432EV, TOP-434EV | ![]() |
2 | |||
868.350 | CAME TOP862NA, Came TOP864NA | ![]() |
3 | ||
CARDIN | 300.000 | S300 | ![]() |
6 | Original remote controls may be not stable in frequency |
310.000 | S301, S302 | ![]() |
9 | Original remote controls may be not stable in frequency | |
433.920 | S476 TX2, S476TX4 | ![]() |
2 | ||
CASALI |
330.000 | ![]() |
11 | Original remote controls may be not stable in frequency | |
433.920 | Genius 433 2, Genius 433 3, JA400 TM433, JA401 TM433 | ![]() |
2 |
||
CASIT | 306.000 | ERTS92B, ERTS92T | ![]() |
8 |
Original remote controls may be not stable in frequency |
433.920 | ERTS92B, ERTS92T | ![]() |
2 |
||
ERTS20DB, ERTS20DQ | ![]() |
2 |
|||
ERTS476D, ERTS476Q | ![]() |
2 |
|||
TXS1, TXS2, TXS3, TXS4, TXS6 ERTS97B, ERTS97T |
![]() |
2 |
|||
CEDAMATIC | 433.920 | Cedamatic AEMX4, AEMX2, AEMX1 | ![]() |
2 | |
CELINSA | 433.920 | S10 1, S10 2, SAW1, SAW2 | ![]() |
2 |
|
CENTURION | 433.920 | CLASSIC, SMART, SMART2 | ![]() |
2 |
|
CHAMBERLAIN LIFTMASTER MOTORLIFT SEARS CRAFTSMAN |
300.000 | Chamberlain 300MC (multicode) | ![]() |
Not supported yet! |
|
315.000 | 333LM | ![]() |
Not supported yet! |
||
360LM, 362LM, 363LM | ![]() |
Not supported yet! | |||
390.000 | 50CB, 53CB, 750CB, 753CB, 50LM, 53LM, 61LM, 62LM, 63LM, 139.53100, 139.53110, 139.53200, 139.53210 | ![]() |
Not supported yet! | ||
54CB, 756CB, 54LM, 64LM, 859CB | ![]() |
Not supported yet! | |||
850CB, 853CB, 959CB, 81LM, 82LM, 83LM, 84LM, 99LM |
![]() |
Not supported yet! | |||
33LM | ![]() |
Not supported yet! | |||
418.000 | 4180, 4182, 4183 | ![]() |
Not supported yet! | ||
4185 | ![]() |
Not supported yet! | |||
787 remote
less entry |
![]() |
Not supported yet! | |||
433.920 | 4330E, 4332E, 4333E | ![]() |
Not supported yet! | ||
4335E | ![]() |
Not supported yet! | |||
CPS | 433.920 | TCP3, CPS, Jolly 4 | ![]() |
2 |
|
CPS1 TCP3, CPS2 TCP3, CPS4 TCP3 EM1CV, EM2CV, EM4CV |
![]() |
2 |
|||
DASPI | 433.920 | Daspi Happy2 433, Daspi Pops2 | ![]() |
2 |
|
Daspi Zero2, Zero2CLO, Zero4CLO | ![]() ![]() |
2 | |||
DEA | 306.000 | 306 1, 306 2, 306 4 | ![]() |
8 |
Original remote controls may be not stable in frequency |
306 | ![]() |
8 |
Original remote controls may be not stable in frequency | ||
433.920 | 433 1, 433 2, 433 4, Gold S1, Gold S2 Dea Gold 238 S1, Dea Gold 238 S2, Dea Gold 239 S4 |
![]() |
2 |
||
Genie | ![]() |
2 |
|||
Punto S2 | ![]() |
2 |
|||
Dea MIO TD2, MIO TD4 | ![]() |
2 |
|||
DELMA | 300.000 | Apollo 300, ELSAMEC Apollo 300 | ![]() |
6 |
Original remote controls may be not stable in frequency |
Mizard 300 1, Mizard 300 2, King | ![]() |
6 |
Original remote controls may be not stable in frequency | ||
433.920 | Mizard 433 1, Mizard 433 2 | ![]() |
2 |
||
King 433 2 | ![]() |
2 |
|||
Style Copy 2CH (this is a code duplicator) | ![]() |
2 |
|||
DICKERT | 433.920 | Dickert MAHS433 01, MAHS433 04 Note: we can NOT guarantee that it can be duplicated, because it depends by the receiver. |
![]() |
Not supported yet! |
|
Dickert S10-433A1L00, S10-433A4L00, S20-433A1L00, S20-433A4L00, S20-433A1000, S20-433A4000 Note: only RED buttons model can be duplicated! |
![]() |
2 |
|||
Dickert S5-433-A2L00, S5U-433-A2L00 |
![]() |
2 |
|||
868.350 | Dickert HS868-21 Note: only RED buttons model can be duplicated! |
![]() |
3 |
||
Dickert S5-868A2L00, S5U-868A2L00 |
![]() |
3 |
|||
Dickert S10-868A100, S10-868A400, S20-868A1L00, S20-868A4L00, S20-868A1000, S20-868A4000 Note: only RED buttons model can be duplicated! |
![]() |
3 |
|||
Dickert S5-868A2L01, S10-868A1L01, S10-868-A4L06, green buttons | ![]() |
3 | Firmware Rev.03c or later | ||
DIGICODE | 300.000 310.000 |
DC5010, DC5012, DC5030, DC5032, DC5040, DC5042, DC5060, DC5062, DC5070, DC5072 | ![]() |
6 or 9 |
Original remote controls may be not stable in frequency |
DITEC | 433.920 | GOL4C | ![]() |
2 |
|
DOITRAND FDOITRAND |
433.920 | MPSTF2E JAUNE, MPSTF4E, HYPERPHONE MPSTF2E_GRISE | ![]() |
2 |
|
TS2DE, TS4DE |
![]() |
2 |
|||
DOORHAN | 433,920 | ![]() |
2 | ||
DOORMATIC | 433.920 | SAW | ![]() |
2 |
|
DUCATI |
433.920 | TSAW1, TSAW2, TSAW3, TSAW4, 124 ELBER TSAW1, TSAW2, TSAW3, TSAW4 RONDY TSAW1, RONDY TSAW2, RONDY TSAW3 |
![]() |
2 |
|
TPR10-A, TPR20-A RONDY TPR10_A, RONDY TPR20_A |
![]() |
2 |
|||
TE2 | ![]() |
2 |
|||
6203blue and transparent, with transparent buttons |
|
2 |
|||
DÜWI |
433.920 |
Several models, handsender used for radio sockets |
2 |
||
ELBE | 433.920 | 501, 502, 504 | ![]() |
2 |
|
502a, 504a | ![]() |
2 |
|||
502, 504 | ![]() |
2 |
|||
ELCA | 300.000 | Aster 1100, Aster 1101 | ![]() |
6 |
Original remote controls may be not stable in frequency |
433.920 |
IRIS, IRIS 9CH. |
![]() |
2 |
||
ASTER2 | ![]() |
2 |
|||
Aster 1000, Aster1001. Colors: black, blue, light grey |
![]() |
2 |
|||
GEMINI 9CH | 2 |
||||
VIRGO | ![]() |
2 |
|||
ELDAT |
433.920 | Eldat Basewave RT20-4103M-01, RT20-4104M-01, Eldat RT20-4k, Eldat RT35-4104M-01, RT35-4k, Eldat RT21-4101M-01, RT21-4102M-01, MFZ 400033 , MFZ RT20-4104M-01 | ![]() |
2 | |
Eldat Basewave RT28-4101M-01, RT27-4101M-01, RT26-4101M-02, RT21-4125M-01, RT21-4139M-01, RT21-4139M-02, RT31-4139M-01, RT31-4139M-02, RTC02-4104M-01 | ![]() |
2 | |||
868.300 | Eldat Basewave RT20-5004M-01, RT20-5003M-01, Eldat RT20-5k, Eldat RT35-5004M-01, RT35-5k, Eldat RT21-5001M-01, RT21-5002M-01, NASSAU RT20-4K | ![]() |
3 | ||
Eldat Basewave RT28-5001M-01, RT27-5001M-01, RT26-5001M-02, RT21-5025M-01, RT21-5039M-01, RT21-5039M-02, RT31-5039M-01, RT31-5039M-02, RTC02-5004M-01 | ![]() |
3 | |||
ELV |
868.350 | FS20 S4, FS20 S8, FS20 S8-2, FS20 S16, FS20S16R, FS20 S20-2, FS20 S20-3 |
![]() |
3 | |
ELVOX | 433.920 | Elvox ET02 ZT03 | ![]() |
2 |
|
Elvox ET03, ET04 | ![]() |
2 |
|||
868.350 | Elvox ET08 | ![]() |
3 |
||
ERONE | 433.920 | SETDS39433E2, SETDS39433E4 | ![]() |
2 |
|
ERREKA | 433.920 | Erreka LUNA, SMAT RESON 1, RESON 2, Erreka RESON 3 | ![]() ![]() |
2 | |
EUROPE AUTOMATISME | 306.000 | ASMY1, ASMY2, ASMY4 | ![]() |
8 | Original remote controls may be not stable in frequency |
433.920 | ARMY1, ARMY2, ARMY4 | ![]() |
2 | ||
S1, S2, S3 | ![]() |
2 | |||
FAAC | 300.000 | Faac TM300S, TM300S05 H Faac TM1 300, TM2 300, TM3 300 |
![]() |
6 |
Original remote controls may be not stable in frequency |
315.000 | Faac T1, T2, T3 Faac TM1 315, TM2 315, TM3 315 |
![]() |
4 |
Original remote controls may be not stable in frequency | |
330.000 | Faac TM1, TM2, TM3 Faac TM1 330, TM2 330, TM3 330 |
![]() |
11 |
Original remote controls may be not stable in frequency | |
418.000 | Faac TM1 418 DS, TM2 418 DS, TM3 418 DS | ![]() |
14 |
||
Faac TM 418SL, TM1 418SL, TM2 418 SL, TM3 418SL | ![]() |
14 |
|||
433.920 | Faac TM1 433 DS, TM2 433 DS, TM3 433 DS TM1 433DS DPH, TM2 433DS DPH, TM3 433DS DPH |
![]() |
2 |
||
Faac TML2 433 SLR, TML4 433 SLR, TML2-433-SLR, TML4-433-SLR, TML2 433 ESL, TML4 433 ESL | ![]() |
2 |
|||
Faac TML2 433 SLP, TML4 433 SLP, TML2-433-SLP, TML4-433-SLP | ![]() |
2 |
|||
868.350 | Faac TM1 868 DS, TM2 868 DS, TM3 868 DS Faac TM1 868DS DPH, TM2 868DS DPH, TM3 868DS DPH |
![]() |
3 |
||
FADINI BPT |
315.000 | ASTRO75-1, ASTRO75-2, ASTRO75-4 | ![]() |
4 |
Original remote controls may be not stable in frequency |
433.920 | 433 2M, Astro43_2m | ![]() |
2 |
||
Astro433-2, Astro433-4, Astro43-2, Astro43-4 | ![]() |
2 |
|||
FERPORT | 433.920 | Tac1, Tac2, Tac4, Tac1k, Tac2k, Tac4k, Tac2kr | ![]() |
2 |
|
FUNKMODUL ELSECO |
433.920 | T433A2K1, T433A2K2 | ![]() |
2 |
|
T433A2K4, T433A2K4n | ![]() |
2 |
|||
GIBIDI | 306.000 | TS2M | ![]() |
8 |
Original remote controls may be not stable in frequency |
433.920 | Open TMB 433, OPEN TMQ 433, OPEN OUT 2, OPEN OUT 4 | ![]() |
2 |
||
GOBBATO | 306.000 | T306 | ![]() |
8 |
Original remote controls may be not stable in frequency |
GRIFFON | 403.55 | Griffon 404 MHz dip switch remotes and duplicating remotes | ![]() |
13 |
|
433.92 | Griffon 433 MHz dip switch remotes and duplicating remotes | ![]() |
2 |
||
GTO | 318.000 | GTO Mighty Mule 1/2 buttons, RB741, RB742 | ![]() |
Not supported yet! |
|
GTO Mighty Mule 3 buttons, RB743 | ![]() |
Not supported yet! |
|||
GULLIVER | 306.000 | Gulliver MD/1, Gulliver MD/1, Gulliver MDRQ 306 LABEL | ![]() |
8 |
Original remote controls may be not stable in frequency |
433.920 | MDW 2E | ![]() |
2 |
||
HAUSS | 433.920 | Pocket 3750-1, Pocket3750-2, Pocket 3750-4 | ![]() |
2 |
|
HEDDOF | 318.000 | P219-1, P219-2 | ![]() |
Not supported yet! |
|
P220-1, P220-2, P220-3 | ![]() |
Not supported yet! |
|||
HORMANN HOERMANN |
433.920 |
HSM2, HSM4, yellow buttons |
![]() |
2 |
|
868.300 | HS1, HS2, HS4, blue buttons |
|
3 |
||
HSD2 | ![]() |
3 |
|||
HSE2, HSE4, blue buttons | ![]() |
3 | |||
HSM2, HSM4, blue buttons | ![]() |
3 |
|||
HSP4, blue buttons | ![]() |
3 |
|||
HSS2, HSS4, blue buttons | ![]() |
3 |
|||
HSZ1-868, HSZ2-868 | ![]() |
3 |
|||
HRC | 433.920 | 2 |
|||
JAY | 433.920 | UBEI x1 SL1 | ![]() |
2 |
|
UBET 11, UBET 21, UBET 31, UBET 41, UBET 61Â | ![]() |
2 |
|||
KEY AUTOMATION | 433.920 | 900TXB-42, 900TXB-42N, 900TXP-42, 900TXP-42N | ![]() |
2 |
|
900TXB-44, 900TXG-44 | ![]() |
2 |
|||
900SUB-44, 900SUB-44N, 900SUB-44W, 900SUB-44WN | ![]() |
2 |
|||
900TXK-42, 900TXW-42,900TXK-44, 900TXW-44 | ![]() |
2 |
|||
KING | 433.920 | Not yet supported! |
|||
LABEL IUPPITER |
306.000 | MDR, IUPPITER 306 | ![]() |
8 |
Original remote controls may be not stable in frequency |
433.920 | RJW/1E, RJW/2E, RJW/4E, RJW/12E | ![]() |
2 |
||
MDW/1E, MDW/2E | ![]() |
2 |
|||
LEB | 306.000 | TSA4 | ![]() |
8 |
Original remote controls may be not stable in frequency |
433.920 | TMW | ![]() |
2 |
||
TSAW2N, TSAW4N | ![]() |
2 |
|||
TCP3Â (this is a code duplicator) | ![]() |
2 |
Not sure it work, because this is a duplicator: check the original remote control | ||
TRK4 | ![]() |
2 |
|||
TPW4 | ![]() |
2 |
|||
868.300 | TPK4 | ![]() |
3 |
||
LINCE | 433.920 | LR 2035 | 2 | ||
LINEAR |
300.000 |
MULTI-CODE 308911, 308913, 1089 | ![]() |
6 or 9 |
Original remote controls may be not stable in frequency |
MULTI-CODE 412001, 414001, 109410, 109710 | ![]() |
6 or 9 |
Original remote controls may be not stable in frequency | ||
MULTICODE 306010, 307010, 108210 | ![]() |
6 or 9 |
Original remote controls may be not stable in frequency | ||
MULTI-CODE 308301, 308302 | ![]() |
6 or 9 |
Original remote controls may be not stable in frequency | ||
MULTI-CODE 105015 | ![]() |
6 or 9 |
Original remote controls may be not stable in frequency | ||
310.000 | Delta3 Moore-o-Matic: DT, DT2, DT2A, DT22A, DTC, DTD |
![]() |
9 | Not supported yet! | |
Delta 3 Moore-o-Matic: DT3, DT4 | ![]() |
9 | Not supported yet! |
||
Delta 3 Moore-o-Matic: Mini-T LB "LadyBug" | ![]() |
9 | Not supported yet! |
||
312.000 | Delta3 DTK (canada) | ![]() |
Not supported |
||
MA SYSTEM | 433.920 | MA TX1, MA TX2, MA TX3 | ![]() |
2 |
|
MARANTEC TECKENTRUP |
418.000 | D212, D222, D232 | ![]() |
14 |
|
433.920 | D101 | ![]() |
2 |
||
D12 | ![]() |
2 | |||
D212, D222, D232 | ![]() |
2 | |||
Digital 302, D302 | ![]() |
2 | |||
Digital 304, D304 | ![]() |
2 | |||
868.300 | Digital 302, D302 | ![]() |
3 | ||
Digital 304, D304 | ![]() |
3 |
|||
MCZ | 433.920 | Aster | ![]() |
2 |
|
MEIßNER MEISSNER |
433.920 | LW433-1, LW433-2, LW433-4 | ![]() |
2 |
|
Pocket 3750 1, 2, 4 | ![]() |
2 |
|||
MKTECHNO |
306.000 | MK-TECHNO TX1 and MKTECHNO TX2, with RED LED |
![]() |
8 | |
MONSEIGNEUR | 433.920 | ARC2, ARC4 | ![]() |
2 |
|
TDR 400 3845, TDR 400 3846, TDR 400 3847 T1SAW433, T2SAW433, T4SAW433 |
![]() |
2 |
|||
MOTORLINE |
433.920 | MX1, MX2, MX3, MX4, MX6 MX11, MX12, MX13 |
![]() ![]() |
2 |
|
MOTOSTAR | 433.920 | CLIKSTAR2, CLICKSTAR4 CLICK-4M, CLICKSTAR RE 532, CLICKSTAR RE 534 |
![]() |
2 |
|
NICE | 306.000 | EASY S1, S2, S4 | ![]() |
8 |
Original remote controls may be not stable in frequency |
433.920 | FLO1, FLO2, FLO4 | ![]() |
2 |
||
VERY VE | ![]() |
2 |
|||
NOLOGO | 306.000 | ![]() |
8 |
Original remote controls may be not stable in frequency |
|
433.920 | ECO DIP | ![]() |
2 |
||
NOVOTECNICA | 306.000 | BIT N1, BIT N2 | ![]() |
8 |
Original remote controls may be not stable in frequency |
BIT NT1, BIT NT2, BIT NT4 | ![]() |
2 |
|||
OG | 433.920 | OG62, OG64 | ![]() |
2 |
|
O&O OeO O and O |
360.000 | OeO TX2, OeO TX4 (green buttons) | ![]() |
8 | Original remote controls may be not stable in frequency |
433.920 | OeO TX2-E, OeO TX4-E (red buttons) |
![]() |
3 | ||
T-COM DS 4-2, T-COM DS 4-4 | ![]() |
2 |
|||
OPENOUT | 306.000 | TS2M | ![]() |
8 |
Original remote controls may be not stable in frequency |
433.920 | TMQ 433 2, TMQ 433 4 | ![]() |
2 |
||
PIAZZETTA | 433.920 | 4 buttons for wood/pellet heater | ![]() |
2 |
|
PORTAMATIC | 433.920 | MPH01, MPH02 | ![]() |
2 |
|
POWERFIX Profi |
433.920 | RCB-A 3600R | ![]() |
2 |
|
PRASTEL | 306.000 | NCSMT1, NCSMT2P, NCSMT4P | ![]() |
8 |
Original remote controls may be not stable in frequency |
KMFT2P, KMFT4P, KMFT2P93, KMFT4P93 | ![]() |
8 |
Original remote controls may be not stable in frequency | ||
433.920 | MPSTF2E, MPSTF4E | ![]() |
2 |
||
PROEM | 433.920 | ER2C4ACM, ER4C4ACM | ![]() |
2 |
|
PROGET | 433.920 | ETY_433N2, ETY 433N4 | ![]() |
2 |
|
EMI433-N2 | ![]() |
2 |
|||
PROTECO | 433.920 | TX433 | ![]() |
2 |
|
EUROMATIC | ![]() |
2 |
|||
HIT | ![]() |
2 |
|||
PUJOL | 288.000 | JCM TRINARIO 1, TRINARIO 2, TRINARIO 3 | ![]() |
5 |
Original remote controls may be not stable in frequency |
288.000 | TT1, TT2, TRINARIO 1, TRINARIO 2 | ![]() |
5 |
Original remote controls may be not stable in frequency | |
PULSAR | 318.000 | 9931-318, 9931T-318 | ![]() |
Not supported yet! |
|
QUASAR | 433.920 | 433 TANGO SLIM BLEU | ![]() |
2 |
|
QUICK | 433.920 | Model: 302 | |
2 |
|
ROGER | 433.920 | R80/TX12, R80/TX14, R80/TX12R, R80/TX14R | ![]() |
2 |
|
H80/TX22 | ![]() |
||||
G80/TX32, G80/TX34, G80/TX32R, G80/TX34R | ![]() |
||||
SEA |
433.920 | ![]() |
2 |
||
SMART433_TX2, SMART433_TX3 SMART433_TX2_COPY,SMART433_TX3_COPY Smart2, Smart3 |
![]() |
2 |
|||
868.350 | 231103, SEA868_4 | ![]() |
3 |
||
231103, Head2 Dip Switch | ![]() |
3 |
|||
SMART868-TX2, SMART868-TX3 Smart2, Smart3 |
![]() |
3 |
|||
SEAV | 306/330 |
TX1, TX2, TX3, TX4, TX1/330 |
![]() |
8 |
Original remote controls may be not stable in frequency |
433.920 | TXS1, TXS2, TXS3, TXS4 | ![]() |
2 |
||
Behappy S1, Behappy S2, Behappy S3 | ![]() |
2 |
|||
Be Easy TX, Be Easy Murale2 | ![]() |
2 |
|||
BeSmart S2, BeSmart S4 | ![]() |
2 |
|||
BeFree S1 | ![]() |
2 |
|||
868.300 | BeSmart H2, BeSmart H4 | ![]() |
3 |
||
BeFree H1 | ![]() |
3 |
|||
SECURVERA | 433.920 | SV R2C | ![]() |
2 |
|
SV R2C | ![]() |
2 |
|||
SV R4C | ![]() |
2 |
|||
SV R6C | ![]() |
2 |
|||
SENDER | 433.920 | ![]() |
2 |
||
SENTRY MARTIN ELECTRONICS |
403.550 | SENTRY binary, SENTRY trinary |
s![]() |
13 |
|
433.920 | SENTRY binary | ![]() |
2 |
||
SERAI | 310.000 | OG/32 | ![]() |
9 |
Original remote controls may be not stable in frequency |
433.920 | OG/52, OG/54, OG/82, OG/84 | ![]() |
2 |
||
OG/28, OG/48, OG/62, OG/64 | ![]() |
2 |
|||
OG/02, OG/04 | ![]() |
2 |
|||
SICE | 433.920 | TX4 CLACK Bigfoot | ![]() |
Not supported! |
|
SILVELOX - INTRA | 306.000 | Green case with black buttons | ![]() |
8 | Original remote controls may be not stable in frequency |
433.920 | Silvelox Intra HSM4 | ![]() |
2 | ||
SIMBA | 433.920 | Simba RC1, Simba RC4 |
2 | ||
SIMINOR | 433.920 | ER2C4ACM, ER4C4ACM, ER2C4ACS, ER4C4ACS |
![]() |
2 |
|
SKYLINK |
300.000 |
MultiLink SD300M, Skylink 100, LD310M, SD310M |
![]() |
6 or 9 |
Original remote controls may be not stable in frequency |
318.000 | Skylink Mltilink PD-318M | ![]() |
Not supported yet! |
||
390.000 | Multilink CB-390M, CD-390M (versions compatible with Chamberlain) |
![]() |
Not supported yet! |
||
SMD | 433.920 | LW433-1, LW433-2, LW433-4 : AM models only | ![]() |
2 |
|
SOMFY | 433.920 | LEB TMW | ![]() |
2 |
|
STAGNOLI | 433.920 | ZEUS AZTR | ![]() |
2 |
|
868.350 | ZEUS AZTR | ![]() |
3 |
||
STANLEY | 310.000 | 24286 | ![]() |
9 |
Original remote controls may be not stable in frequency |
1082 | ![]() |
9 |
Original remote controls may be not stable in frequency | ||
1050 | ![]() |
9 |
Original remote controls may be not stable in frequency | ||
1094 | ![]() |
9 |
Original remote controls may be not stable in frequency | ||
1097 | ![]() |
9 |
Original remote controls may be not stable in frequency |
||
STARTEC | 433.920 | TXQ2 | ![]() |
2 |
|
STINGER | 300.000 310.000 318.000 390.000 |
300MCD21V, 300MCD22V 310MCD21V, 310LID21V, 310LID22V 318ALD31V 390LMD21V, 390LMPB1V |
![]() diff. colors |
This is a compatible remote control: please look for the compatibility of the original retmotes! |
|
Superior Electronics | 433.920 | Simple2, Simple4 | ![]() |
2 | |
TAU | 315.000 | 250 TXA2, 250 TXA4 | ![]() |
4 |
Original remote controls may be not stable in frequency |
433.920 | 250 SLIM, 250K-SLIM, 250K-SLIMC | ![]() |
2 | ||
250TXD2, 250TXD4 | ![]() |
2 |
|||
250BUG2, 250BUG4 | ![]() |
2 | |||
250T-4, 250T-4C | ![]() |
2 |
|||
TEC KEY | 300.000 | MK1010 | ![]() |
6 |
Original remote controls may be not stable in frequency |
TECNOMATIC | 433.920 | TQ433 | ![]() |
2 |
|
TEDSEN BERNER GFA Elektromaten |
433.920 | SKX1MD, SKX2MD, SKX3MD, SKX4MD | ![]() |
2 |
|
SKX1KD, SKX2KD, SKX4KD, SKX6KD | ![]() |
2 |
|||
SKX1DL, SKX2DL, SKX3DL, SKX4DL | ![]() |
2 | |||
SKX1LC, SKX2LC, SKX3LC, SKX4LC | ![]() |
2 | |||
SKX1SL, SKX2SL, SKX3SL, SKX4SL | ![]() |
2 | |||
SKJ | ![]() |
2 | |||
SKX1WD, SKX2WD, SKX4WD, SKX11WD, SKX22WD, SKX44WD | ![]() |
2 | |||
TELCOMA | 306.000 | RCST2, RCST4 | ![]() |
8 | Original remote controls may be not stable in frequency |
433.920 | TELCOMA EDGE 2, TELCOMA EDGE 4 | ![]() |
2 | ||
TELCOMA TANGO 2 SW, TANGO4 SW | ![]() ![]() |
2 |
|||
TANGO BLUE 2, TANGO 4 BLUE, TANGO BLEU 2, TANGO BLEU 4 | ![]() |
2 |
|||
TANGO 2 N, TANGO 4 N | ![]() |
2 |
|||
TANGO 2 SLIM, TANGO 4 SLIM | ![]() |
2 |
|||
Telcoma Noire2, Noire4 Note: Rolling-code jumper should be removed from the receiver! |
![]() |
2 | |||
TANGO WIN3 | ![]() |
2 | |||
TANGO2, TANGO4 | ![]() |
2 |
|||
TELEMATIC | 300.000 | TL1, TL2 | ![]() |
6 | Original remote controls may be not stable in frequency |
TKC | 433.920 | TSAW433 | ![]() |
2 |
|
TORAG | 433.920 | S429 1, S429 2, S429 4 | ![]() |
2 |
|
TORMATIC DORMA NOVOFERM |
433.920 | HS, Dorma HS43 1E, HS43 2E, HS43 3E, HS43 4E | ![]() |
2 |
|
MAHS, Siebau, Novoferm, Dorma | ![]() |
2 |
|||
MHS, MHS43-1 | ![]() |
2 |
|||
TREMA | 433.920 | TO93TV1, TO93TV2, TO93TV4 | ![]() |
2 |
|
TUBAUTO | 433.920 | DIGITAL 101 433 | ![]() |
2 |
|
V2 | 306.000 | TRR1_306 | ![]() |
8 |
Original remote controls may be not stable in frequency |
318.000 | TPS1K | ![]() |
10 | Original remote controls may be not stable in frequency | |
433.920 | V2 MATCH white, V2 MATCH black | ![]() |
2 | This is a duplicator, so it is not possible to know exactly the transmitting code, but factory programmed code and almost any code supported by this duplicator is also supported by our transmitters |
PHOENIX series: Phoenix2, Phoenix2P, Phoenix4, Phoenix4P, TXC2 Contr.47, TXC4 Contr.47, Handy2 Contr.47, Handy4 Contr.47, TRC4 Contr.47, TSC4 Contr.47 . |
|
2 |
TCP3 | ![]() |
2 | |||
TCP3, ARC3 | ![]() |
2 | |||
TCP3 | ![]() |
2 | |||
TPR | ![]() |
2 | |||
T1SAW/433, T2SAW/433, T4SAW/433 | ![]() |
2 | |||
TRR1, TRR2, TRR4 | ![]() |
2 | |||
PMR2, PMR4 | ![]() |
2 | |||
868.300 | PHOENIX series: Phoenix2-868, Phoenix2P-868, Phoenix4-868, Phoenix4P-868. Note:the receiver should be programmed with the rolling code feature disabled. |
![]() |
3 | ||
VISONIC | 315.000 | WT100, WT100A, WT101, WT101A, WT102, WT104,WT-201, WT-201A, WT-201WP, WT-201AWP | ![]() ![]() ![]() |
4 |
|
418.000 | WT-100, WT-100A, WT-101, WT-101A, WT-102, WT-104,WT-201, WT-201A, WT-201WP, WT-201AWP | 14 |
|||
433.920 | WT 100, WT 100A, WT 101, WT 101A, WT 102, WT 104,WT 201, WT 201A, WT 201WP, WT 201AWP | 2 |
|||
VSEG | 433.920 | CR SLIM | ![]() |
2 |
|
WAINE-DALTON | 433.920 | S429-1, S429-2, S429-4, S429-mini | ![]() ![]() |
2 |
|
S425 | ![]() |
2 |
|||
WECLA |
433.920 | 433, 433_2 | ![]() |
2 |
|
ZULLAN | 315.000 | 250TXA1H, 250TXA2H, 250TXA4H | ![]() |
4 |
Original remote controls may be not stable in frequency |
OEM | 315.000 |
|
![]() |
4 |
Original remote controls may be not stable in frequency |
Cannot find your remote control in the Compatible table?
Please send a message by Telegram or Whatsapp to +393283730010 including remote control pictures, brand and model.
Additional information:
Original remote controls may be not stable in frequency: it means that the original remote controls has a transmitter circuitry which frequency may be NOT accurate. Because Sender and SenderBatt has a narrow bandwidth receiver, it can copy only remote control that are stable in frequency, like Creasol Multi, MultiST, Sender, SenderBatt.
Not supported yet!: it means that this kind of remote control cannot be copied now, but will be supported later.
Additional information for Creasol Sender programming/usage
Configure Sender to "car mode"
Push button 9 times, wait for led flashing (default 1 time), then push button 3 times.Set frequency to 433.92MHz for CH1
Push button 1 time (channel 1), led goes ON.Immediately push button 5 times (5=frequency), wait for led flashing (default 3 times=868.3MHz), then push button 2 times (=433.92MHz).
Learn remote control on CH1
Push button 1 time (channel 1), led goes ON.Immediately push button 2 times (2=learn remote controls): led starts flashing slowly.
Push button on the remote control: you should see led emitting 2 quick flashes (code stored), 3 quick flashes (code already stored), or 4 quick flashes (code stored, but is a rolling code so it might not work).
Activating the needed channel using the high-beam level
if you connect Sender power supply to the high-beam lights (to the fuse or relay coil), you have to emit a number of short flashes corresponding to the channel number, plus one long flash (1 second or more)## ########### transmit CH1 ## ## ######### transmit CH2 ## ## ## ########## transmit CH3 ## ## ## ## ########### transmit CH4
ChangeLog2021-11-06Added support for PRASTEL MPSTL2E, GIBIDI, DOITRAND TS2DE.2021-10-04SenderBatt BugFix: fixed hold-to-run mode. In previous versions, hold-to-run mode did not stop transmitting when input has been released, but it keeps transmitting for TIMEOUT seconds.20210225Added 27bit even code2014-01-14Enhanced the number of pulses for MARANTEC remote controls to support new models.2013-06-14Enhanced TX TIME settings: now it's possible to set the number of transmitted frames to 64 and 128 |
