- Categoria: Home automation
Creasol DomBus12 è un modulo compatto , 40x30x11mm, con 9 ingressi/uscite configurabili .
Può essere collegato al controllore Domoticz tramite bus seriale RS485 (4 fili, 2 per alimentazione 12/24V e 2 per dati a 115200bps).
Come altri dispositivi DomBus, DomBus12 è progettato per consumare poco, essere affidabile, completamente configurabile e facile da usare . Ogni porta è completamente configurabile, ad esempio come ingresso analogico o digitale, twinbutton (doppio pulsante), contatore, cicalino, NTC 10k, ... 2 porte possono essere utilizzate come uscita open-drain, per attivare 2 relè esterni o LED.

- Categoria: Home automation
Reliable low-power domotic module designed to enable/disable loads saving energy consumption, zeroing the standby power.

- Categoria: Home automation
Creasol DomBus23 is a module for home automation system with several different kind of configurable inputs/outputs in a short size: 74x72x24mm.

- Categoria: Home automation
AVAILABLE IN TWO VERSIONS: DomBus protocol and Modbus protocol!
Creasol DomBus31 is a din-rail relay module, 115x90x40mm, with 8 relays outputs. 6 relays are SPST (Normally Open outputs) with 250V 5A max capability, and 2 relays are SPDT (both Normally Open and Normally Closed outputs) with 10A capability. High efficiency module, with very low power consumption, only 600mW with all relays ON.

- Categoria: Home automation
DomBus32 è un modulo DIN-RAIL, largo 54 mm, con 3 uscite relè , 3 ingressi AC e 5 I/O a bassa tensione .
DISPONIBILE IN DUE VERSIONI: protocollo DomBus e protocollo Modbus !

- Categoria: Home automation
DomBus33 is a DIN-RAIL module, 54mm wide, designed to control an existing lighting system with 3 lights using 115/230V pushbuttons and step-by-step relays.

- Categoria: Home automation
DomBus34 is a DIN-RAIL module, 54mm wide, designed to interface up to 4 power/energy meters, type DDS 238-2 ZN/S (Modbus), to measure power and energy (both imported and exported), voltage frequency and power factor.

- Categoria: Home automation
Creasol DomBus36 è un modulo relè di livello industriale su guida din per sistemi di building automation e domotica, 115x90x40mm, con 12 uscite relè, SPST (uscite normalmente aperte) con capacità 250V 5A max, divise in 3 gruppi di 4 relè, ciascun gruppo con a Morsettiere a vite a 5 posizioni: 1 comune + 4 uscite

- Categoria: Home automation
Modulo domotico su guida DIN, 115x90x40mm, che supporta sia il protocollo DomBus che Modbus RTU , che integra 12 ingressi analogici/digitali a bassa tensione, 3 uscite a relè, 3 ingressi 115Vac / 230Vac . Opzionalmente è in grado di controllare e monitorare l'alimentazione fornita ad una sirena esterna antifurto.
Adatto per interfacciare sensori di allarme (sensori a contatto magnetico, PIR, tamper), monitorare l'interruzione dell'alimentazione (tramite i 3 ingressi AC) e controllare fino a 3 uscite (relè).

- Categoria: Home automation
DIN-rail high reliability and low power home automation module with relays output, low voltage inputs, one 100-250Vac input and plugin terminal blocks.Works with home automation systems like Domoticz, Home Assistant, Node-RED, OpenHAB and more...
Can be used to manage alarm sensors, pushbuttons, lights and other loads, and monitor 230V presence (detecting power outage).

- Categoria: Home automation
Creasol DomBusEVSE è un modulo su guida DIN completamente testato, progettato per Domoticz, Home Assistant, OpenHAB, Node-RED, ioBroker, ... sistemi di automazione domestica, per caricare veicoli elettrici utilizzando lo standard SAE 1772 e IEC 62196 -2 Mode3 (carica CA , fino a 22kW di potenza).
Funziona in modalità stand-alone (con o senza controller domotico) o in modalità gestita (corrente di carica controllata da un controller domotico).

- Categoria: Home automation
Creasol DomBusTH is a fully configurable small electronic board, 32x17mm, that can fit any blank cover with a 3.5mm hole in the centre, needed by the thermal/humidity sensor to exchange air with the room and to get the 3 LEDs light out. It can be connected to a Domoticz controller using the DomBus protocol, and other contollers (Node-RED, HomeAssistant, OpenHAB, ...) using the standard Modbus protocol by RS485 serial bus (using a standard alarm cable with 4 wires, 2 for 12/24V power supply, and 2 for data at 115200bps). Available in both DomBus and Modbus protocols

- Categoria: Home automation
Modulo domotico utilizzabile come inseguitore solare autonomo, mono o biassiale , funzionante in modo autonomo.
Può essere controllato anche da un sistema domotico , come Domoticz (versione DomBusTracker con firmware protocollo DomBus), Home Assistant, Node-RED, OpenHAB , ... (versione DomBusTracker con firmware protocollo Modbus).

- Categoria: Home automation
ESP8266 is a very powerful and cheap MCU equipped with WiFi transceiver, very useful to expand inputs/outputs of a Raspberry/Domoticz controller.

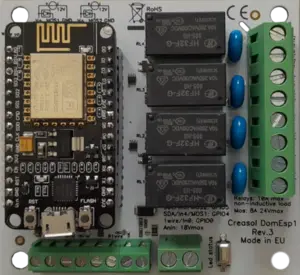

Creasol DomESP1 board is designed for ESP8266 module NodeMCU V3, with 900 mils header pitch (optionally, soldering additional headers, it's possible to use the 1100mils module or WeMos D1 mini module), and integrates the whole circuitry to manage digital inputs, one analog input, 4 relay outputs, 1 low voltage output, I2C bus, 1wire bus and 2 mosfet outputs with 12A 30Vmax capability.

- Categoria: Home automation
Creasol DomRelay2 is a compact module, 43x24x25mm, within 2 relays with 12V 200mW coil, 250V 5A SPST contact with special material designed to prevent contact welding due to excessively high surge current load (capacitive loads or tungsten lamps).
Contacts are protected from overvoltage by metal oxide varistors; coils are protected from overvoltage by free-wheeling diodes.
Relay coil should be driven at 12Vdc 17mA: using DomBusTH or DomBus12 modules it's possible to drive relays using a lower power system, consuming less than 1/4 of nominal power.
